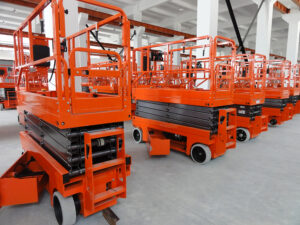

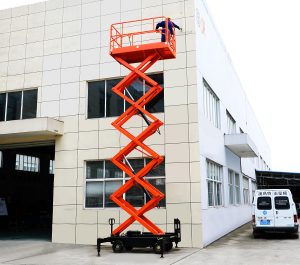

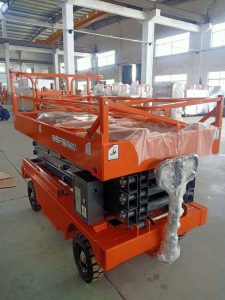

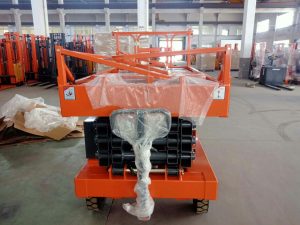

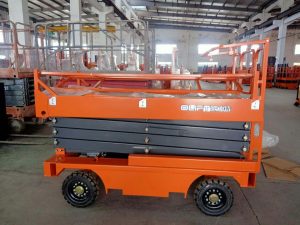

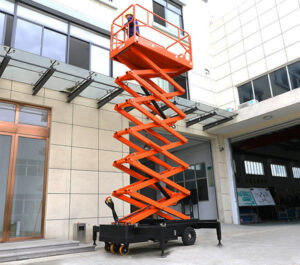

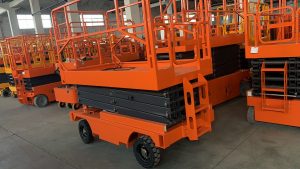

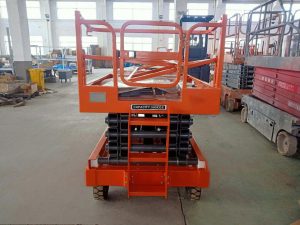

Scissor lifting platform
Semi electric Scissor lift platform is a scissor structure man lift for aerial work which can be towed by man power. The mechanical structure make the platform stability, wide operating and high loading capacity. Normal scissor lift lifting power is AC power, DC power is also available for option. Semi electric scissor lift platform is widely used in factories, warehouses, public places, stations and so on, which provides a good choice for high-altitude operation.
Main specifications
- Working height: 6m, 8m, 10m and 12m
- Working load: 500kg Important features
- AC/DC power system optional
- A one-way extension platform can be added to quickly reach the operating point
| Model Number | PT6S | PT8S | PT10S | PT12S | |
|---|---|---|---|---|---|
| Max. Platform Height | mm | 6000 | 8000 | 10000 | 12000 |
| Min. Platform Height | mm | 1050 | 1175 | 1300 | 1425 |
| Platform Size | mm | 2270x1150x1100 | 2270x1150x1100 | 2270x1150x1100 | 2270x1150x1100 |
| Lift Rated Capacity | kg | 500 | 500 | 500 | 500 |
| The Developed Dimension Of Legs | mm | 2700×2200 | 2700×2200 | 2700×2200 | 2700×2200 |
| Elevating Time | s | 50 | 50 | 80 | 80 |
| Electromotor Power | kw | 2.2 | 2.2 | 3 | 3 |
| Voltage | v | 220 | 220 | 380 | 380 |
| Overall Length | mm | 2540 | 2540 | 2540 | 2540 |
| Overall Width | mm | 1300 | 1300 | 1300 | 1300 |
| Overall Height（Folding frame） | mm | 1730 | 1855 | 1980 | 2105 |
| Overall Net Weight | kg | 1280 | 1460 | 1870 | 2050 |
