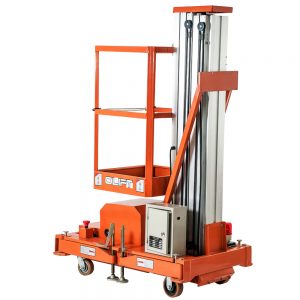

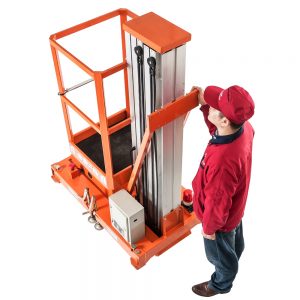

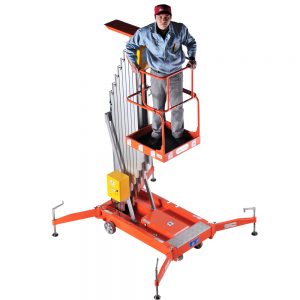

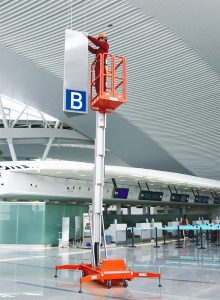

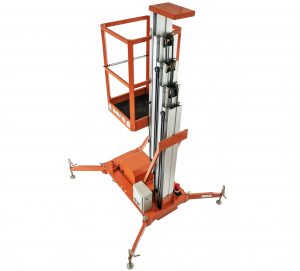

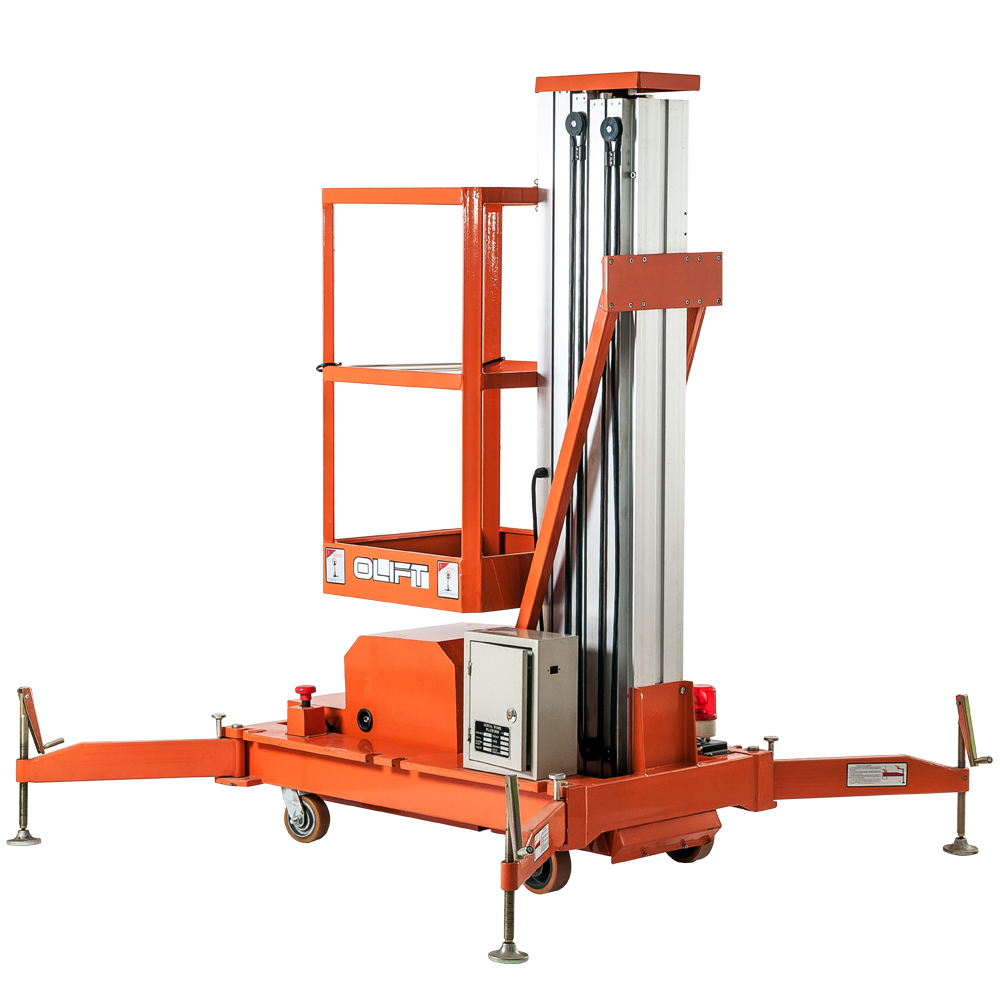

Mobile Aluminium Work Platform (Single Mast)
PL series
1.The product can be powered by DC or AC according to the order.
2.The external size is small after folded. It can be moved into elevator and pass ordinary door or narrow passage.
3.There are two controllers for ascending and descending.
4.It has unique upper platform and lower platform design.
| Model Number | PL06 | PL08 | PL10 | ||
|---|---|---|---|---|---|
| Max. Platform Heigh | mm | 6000 | 8000 | 10000 | |
| Working Height | mm | 7700 | 9700 | 11700 | |
| Ground Clearance | mm | 80 | 80 | 80 | |
| Lift Rated Capacity | kg | 150 | 125 | 125 | |
| Platform Size | mm | 650×600 | |||
| Outspread Size | mm | 1930×1770 | |||
| Electrical Source | AC | V | 220 | ||
| DC | V | 24 | |||
| Battery | v/Ah | 2×12/60 | |||
| Charger | v/A | 24v/10A | |||
| Lifting Motor | AC | v/kw | 220/0.75 | ||
| DC | v/kw | 24/2.0 | |||
| Overall Length | mm | 1330 | |||
| Overall Width | mm | 800 | |||
| Overall Height | mm | 1950 | 2050 | 2150 | |
| Overall Net Weight | AC | kg | 300 | 350 | 400 |
| DC | kg | 330 | 380 | 430 |
