Material Handling Equipment

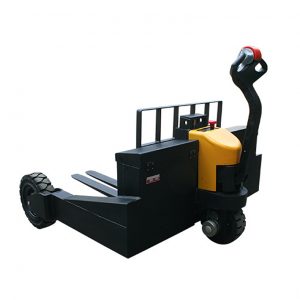

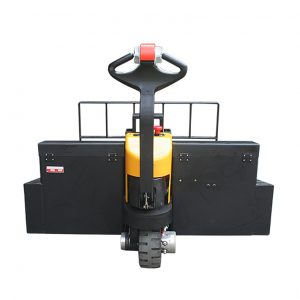

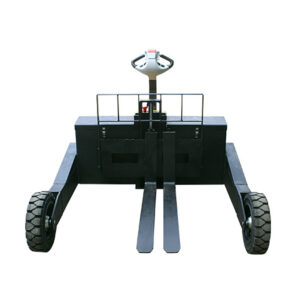

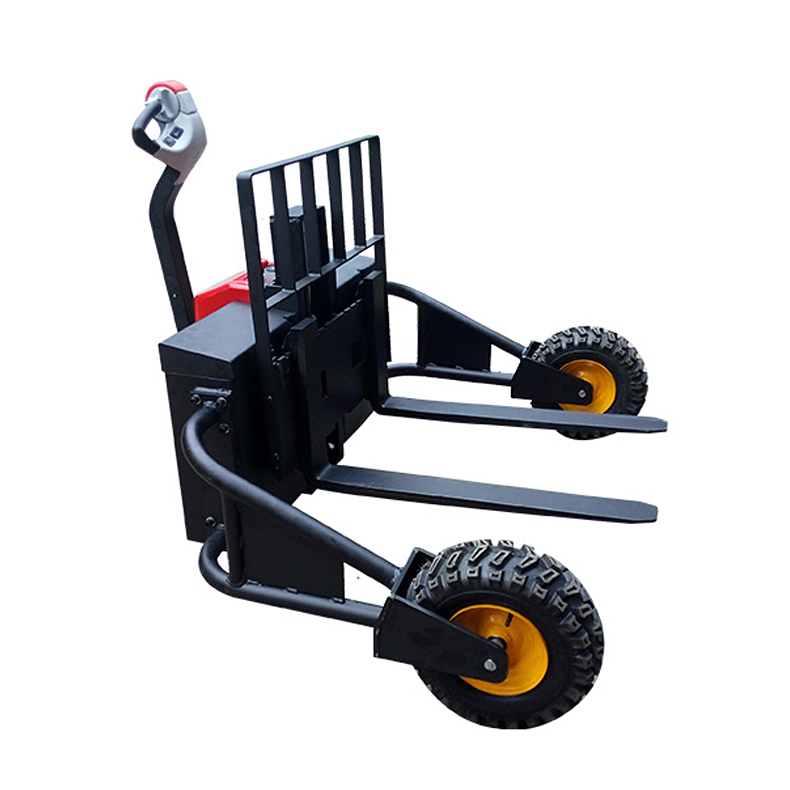

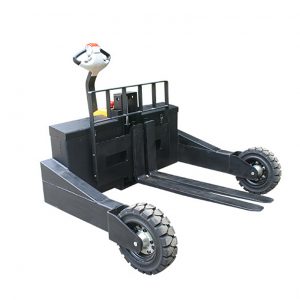

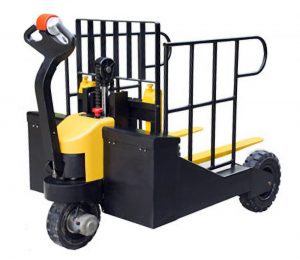

The electric all terrains pallet truck is featuring stonger steel truck frame, loading capacity reach to 1300kgs.It is especially designed for the transportation of pallets on rough terrains, such as construction sites, gravel pits, and nurseries. Powerful drive DC1200w,solid rubber wheels make handling pallet available at all types of environment.Approximate walking speed is 3-4 kmph.
| Model Number | TX13M | TX13L | TX15 | |
|---|---|---|---|---|
| Capacity | kg | 1300 | 1300 | 1500 |
| Load centre | mm | 600 | 600 | 500 |
| Max. fork height | mm | 330 | 330 | 330 |
| Min. fork height | mm | 50 | 50 | 50 |
| Fork length | mm | 1070 | 1070 | 1070 |
| Max. fork width | mm | 685 | 840 | 840 |
| Lifting speed(laden) | mm/s | 13 | 13 | 13 |
| Driving speed(unladen) | km/h | 4.5 | 4.5 | 4.5 |
| Driving speed(laden) | km/h | 3.5 | 3.5 | 3.5 |
| Travel gradeability(unladen) | % | 10 | 10 | 10 |
| Travel gradeability(laden) | % | 5 | 5 | 5 |
| Lifting motor | kw | 0.8 | 0.8 | 1 |
| Drving motor | kw | 1.2 | 1.2 | 1.2 |
| Battery | V/Ah | 2*12V/100Ah | 2*12V/100Ah | 2*12V/120Ah |
| Charger | V/A | 24V15A | 24V15A | 24V15A |
| Driving wheel | mm | Φ310*100 | Φ310*100 | Φ310*125 |
| Front wheel | mm | Φ406*110*2 | Φ406*110*2 | Φ406*110*2 |
| Overall length | mm | 1700 | 1700 | 1700 |
| Overall width | mm | 1270 | 1575 | 1575 |
| Overall height | mm | 1235 | 1235 | 1235 |
