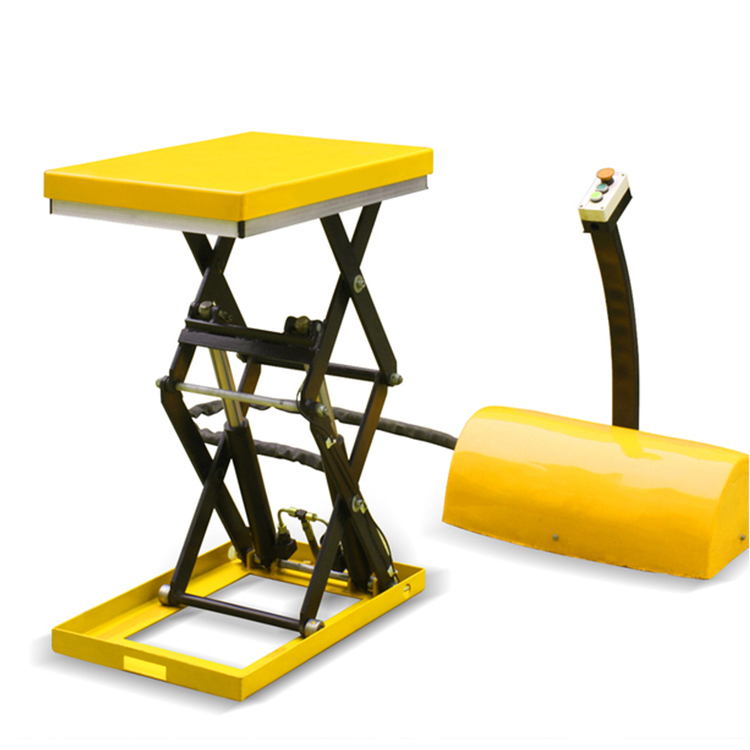

Stationary Electric Mini Scissor Lift Table With Small Platform
Lift tables can be applied in many work places to increase productivity and safety.
Load can be elevated or lowered to optimum heights at the push of a button.
*Small platform for special size material.
*High quality norm power pack from Europe for stable and safe lifting.
*Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions
*Internal power pack euipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
*Safety clearance between scissors to prevent trapping during operation
*Push button pedant control with up,down and emergency stop
*Meet EN1570 norm and ANSI/ASME safety standard.
| Model Number | UM500 | UM1000 | |
|---|---|---|---|
| Capacity | kg | 500 | 1000 |
| Lowered Height | mm | 162 | 180 |
| Raised Height | mm | 950 | 770 |
| Platorm Size | mm | 916×610 | 916×610 |
| Base Frame Size | mm | 700×450 | 906×585 |
| Lift Speed | sec | 17-22 | 15-20 |
| Power Pack | 380V/50HZ,AC 0.75kw | 380V/50HZ,AC 1.1kw | |
| Net Weight | kg | 98 | 115 |
