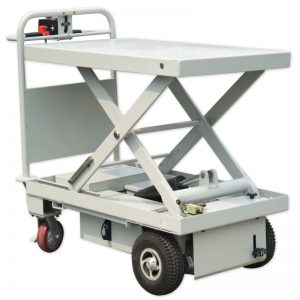

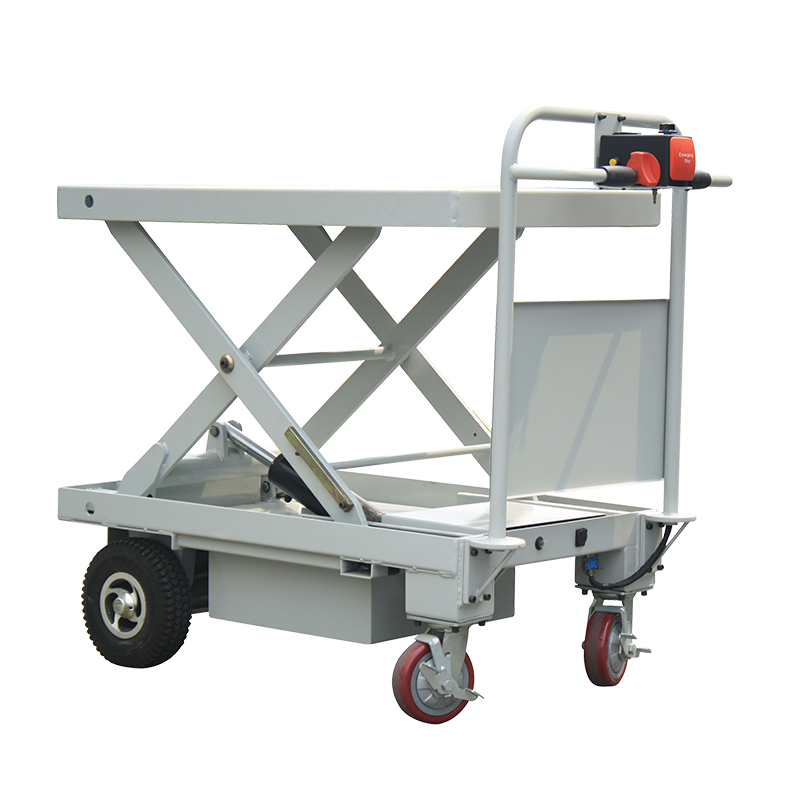

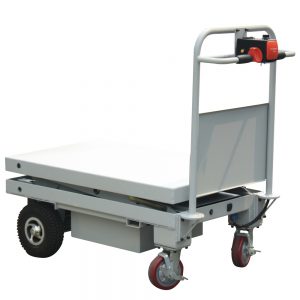

Mobile Vehicle Lift Table With One Cylinder&Scissor UM109
Mobile Vehicle Lift Table With One Cylinder&Scissor scissor lift hydraulic drive motor
The lifting table is used in wide range of factories, shops, warehouses and hospitals.
| Model Number | UM109 |
|---|---|
| Full size | 1,240x600x1,100mm |
| Plate Size | 1,000x600mm |
| Min plate height | 460mm |
| Max plate height | 900mm |
| Net Weight | 180kg |
| Rated loading | 400kgs |
| Drive motor | 400W |
| Lift motor | 400W |
| Battery | 2x12V 33Ah |
| Controller | 70A |
| Working time | 4 H |
| Charge time | 8 H |
