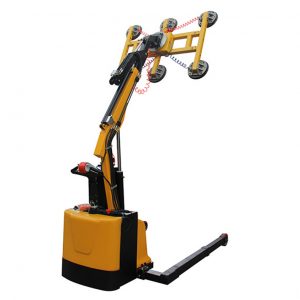

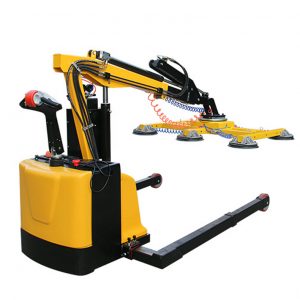

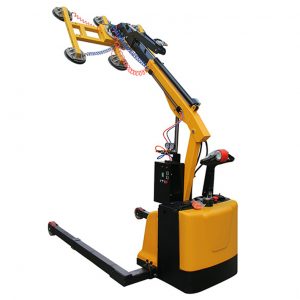

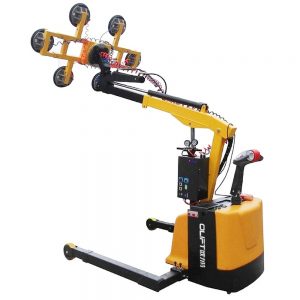

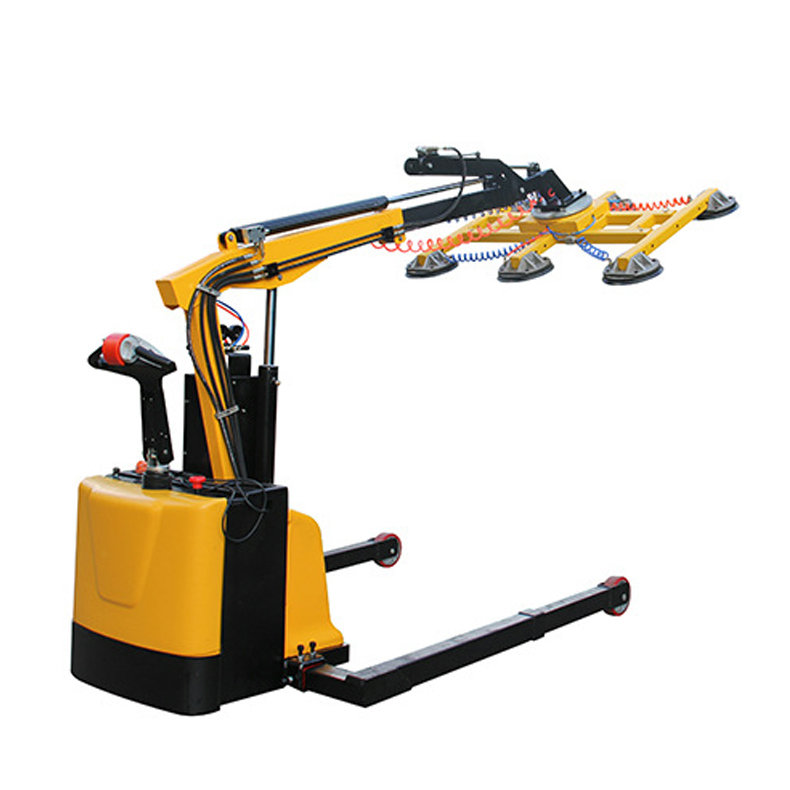

Electric Vacuum Lift Machine-GL0635W
The vacuum lift machine is designed with automatic pressure control and dual safety circuits to avoid system failure.
Ideal for loading & unloading transporting, rotating and installation small width to access into elevators and doors.
Easy for operation, with the following functions:
- Self-propelled drive.
- With adjustable support legs to make the lifter more stable and safe.
- With extending boom and easy to operate and complete install works.
- Electric hydraulic lift and extensions to Lift Height 3515mm Forward Extension 660 mm.
- Electric hydraulic tilting forwards & backwards from vertical to horizontal thru 180 deg.
- Manual rotating.
Electric Vacuum Lift Machine-GL0635W Model: GL0635W
- Horizontal load capacity: 600kg(When the support legs extend 500mm.)
- Working capacity: 350kg(When auxiliary arms extend 660mm.)
- Lifting height: 3515mm
- Auxiliary arm Forward Extension:660mm
- Electric hydraulic tilting forwards & backwards from vertical to horizontal thru: 180deg
- Suction cups standard qty: 6 pieces
- Suction cups size: φ300mm*6 pieces
- Battery: 2*12V/100Ah
- Charger: 24V/15A
- Drive motor: 24V/700W
- Lift motor: 24V/1300W
- Drive speed(with or without load): 3.5km/4.5km/h
- Lift speed(with or without load): 13mm/18mm/s
- Down speed(with or without load): 19mm/25mm/s
- Gradeability(with or without load): 5%/10%
- Overall Length: 2300mm
- Overall Width: 1490mm
- Overall Height: 1570mm
- Net Weight: 1000kg
